Ballistic materials are a type of material that is used in ballistic armor, body armor, and helmets. The military was first developed and used to protect soldiers from shrapnel in WWII. However, the materials used today are much better and more protective. We have developed a better and wide range of designs with ballistic materials and advancements in technology.

Bulletproof vests are modern pieces of light armor that are specifically designed to protect the wearer’s critical organs from injury from bullets. “bulletproof vest” is a common misconception among many protective armor makers and users. The term “bullet-resistant vest” is more appropriate since the wearer is not entirely protected from the impact of a bullet.

Ballistic materials are made from various substances, including steel, plastic, ceramics, and titanium. It is a form of ballistic protection used to shield the wearer from bullets and shrapnel by using their mechanical properties. There are two types of bulletproof materials, hard and soft.

Soft bulletproof materials are mainly made out of Kevlar, or Aramid, a synthetic material woven into an elastic fabric. Hard bulletproof materials are metal, such as steel or aluminum alloys.

What are Aramid Fibers?

Aramid fibers are high-performance fibers constructed of synthetic molecules with moderately rigid polymer chains. These molecules are linked by strong hydrogen bonds that efficiently transfer mechanical stress, allowing the use of low molecular weight chains.

The term “aramid” is an acronym for “aromatic polyamide.” The use of these fibers dates back to WWII for Military Applications but has only recently been developed.

Aramid fibers are distinguished from other synthetic fibers by the following general characteristics:

  • High tenacity
  • Abrasion resistance is excellent.
  • Excellent tolerance to organic solvents
  • Non-conductive
  • There is no melting point.
  • Inflammability is low.
  • Excellent fabric integrity at elevated temperatures

These distinct properties result from stiff polymer molecules with strong crystal orientation and tight contact between polymer chains due to hydrogen bonds.

What is Kevlar? And How Does It Work?

What is Kevlar? And How Does It Work?

Body armor, made of steel plates, was invented in 1538. Until the twentieth century, fully steel bulletproof jackets were gradually used and developed. Today’s body armor systems may contain some steel (though only in small amounts), but they are largely made of Kevlar.

Kevlar is a type of aramid. It is a material that DuPont developed. It is a synthetic fiber that offers protection against bullets and shrapnel. Because of its powerful chemical bonds between its molecules, it is very effective in the body armor world. These bonds are what give Kevlar its durability, flexibility, and strength.

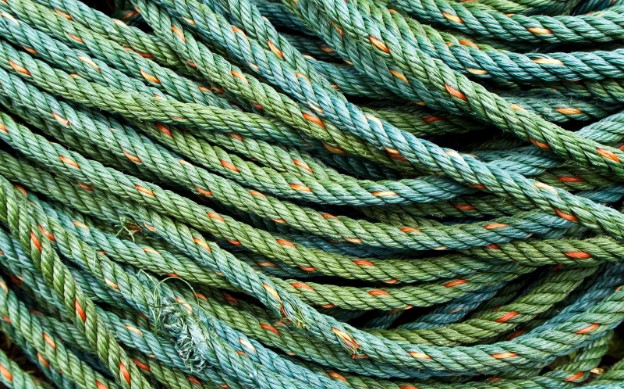

DuPont introduced Kevlar to the market as one of the first bulletproof fabrics and one of the first fibers to be used as a raw material for tires, ropes, and cables. It changed many industries as soon as it was discovered, and nylon fabric is still used today in various products.

This new material significantly lowered the overall weight of the body armor system and greatly enhanced the mobility of the person wearing the vest. This resulted in the modern bulletproof vests that are used today.

Creating Kevlar Fibers

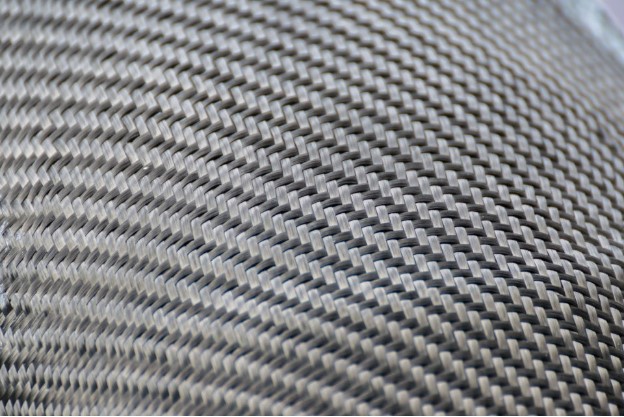

The polymer poly-para-phenylene terephthalate must first be synthesized in a laboratory to create Kevlar. This is accomplished by the polymerization process, which involves joining molecules into lengthy chains. The resulting crystalline liquid containing rod-shaped polymers is then extruded through a spinneret (a small metal plate with microscopic pores that resembles a showerhead) to make Kevlar yarn. After that, the Kevlar fiber is cooled to harden. The synthetic fiber is wrapped onto rolls after being treated with water. The fiber is often sent to throwsters, who twist it to make it ready for weaving methods by the Kevlar maker. The yarns are woven in the most basic design, plain or tabby weave, which is just the pattern of threads that interlace.

Bulletproof Vests Made of Kevlar

Kevlar utilized in the vests is a woven fabric made of synthetic fibers created through polymerization. Kevlar is a high strength material recognized for its high strength to weight ratio; compared to steel’s strength to weight ratio, and Kevlar is five times stronger. Kevlar’s lightweight feature, combined with its high tensile strength (3620 MPa) and energy absorption capability in compared to other materials, makes it an ideal material for use in a ballistic vest.

Protective apparel is the most common ballistic application of composite materials, including Kevlar-based composites.

What Does Cloth Ballistic Mean?`

The term “ballistic” can mean one of two fabric types when it comes to cloth. It might refer to the material used in soft body armor. These fabrics are typically woven using high-strength fibers like para-aramid, high-performance polyethylene (HPPE), or high-modulus polyethylene. However, such forms of ballistic materials have a very specialized end application.

Lower-tech ballistic materials are typically utilized in soft-sided luggage and backpacks. Ballistic fabric is a basket-weave Nylon fabric textile with a 2 x 2 weave. It is often constructed of 1050 denier nylon, but lighter materials, such as 840 deniers, can also be used. “Senior” ballistics is the name given for the thicker ballistic nylon, while the lighter is referred to as a ‘junior’ ballistic. While nylon is the most commonly utilized fiber in these designs, there is also ballistic polyester. Pack cloth is a comparable textile that is usually composed of nylon. However, it is usually a plain weave and less weight (400 or 420 deniers).

What is the Manufacturing Process for Ballistic Materials?

The manufacturing process for ballistic materials is complicated and requires a lot of precision. Ballistic materials can be made from metal or polymer, and they are used in many different industries, including military, law enforcement, and sports.

Body armor Manufacturers follow two main manufacturing processes for ballistic material: injection molding and casting.

Injection molding uses a machine to inject molten material into a mold to form the desired shape. Casting is done by pouring molten metal or other substances into a mold to form the desired shape.

There are three main steps to the manufacturing process for ballistic materials: molding, forming, and finishing.

Manufacturing processes for ballistic materials are essential in designing and developing any bulletproof material.

Ballistic materials have design methods that aim to provide ballistic resistance against bullets, explosives, and other threats from firearms. However, different ballistic properties should be considered when purchasing the end products.

Ballistic Test Standards (Level of Protection / Armor Level) Provided by Bulletproof Vests

Bulletproof vests, unlike traditional clothes, must pass rigorous protective testing mandated by the National Institute of Justice (NIJ). Bulletproof vests are not all the same. Some are resistant to lead bullets at low speeds, while others are resistant to full metal jacketed bullets at high velocities.

Vests are numbered from least to most protective: I, II-A, II, III-A, III, IV, and exceptional cases (those for which the customer specifies the protection needed). Each classification defines which kind of bullets will not penetrate the vest at what velocity. While it may seem sensible to select the highest-rated vests (such as III or IV), such vests are hefty, and the needs of the individual wearing one may require a lighter vest. For police use, experts recommend purchasing a vest that protects against the type of firearm that the officer regularly carries.
